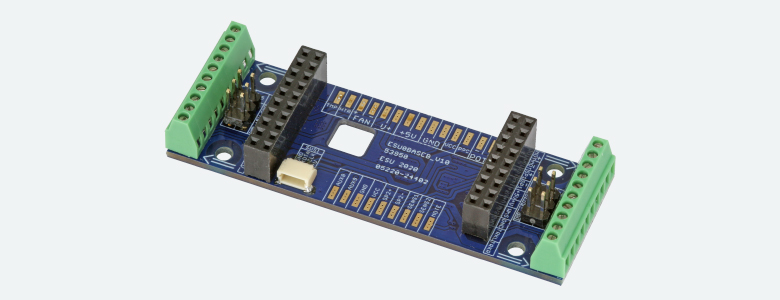

Adapterboard LokSound/LokPilot L

This adapter board ensures the convenient connection of your LokSound 5 L or LokPilot 5 L Decoders. The decoder is inserted directly into the socket strips. On the output side, the most important connections can be contacted directly on robust screw terminals – without soldering! A socket for the optional connection of a SUSI module as well as pin headers for the direct connection of four RC servos complete the equipment.This adapter board allows professional, clean cabling of your locomotive and the decoder can be easily replaced in case of emergency.The adapter board is fastened with screws in the model.



Dimensions 76.2 x 26.4 x 11 mm (LxWxH).



Ordering information

  Art.No. Description Delivery
  53950 Adapter board for LokSound L / LokPilot L, with screw terminals
