PluX22 adapter board 1

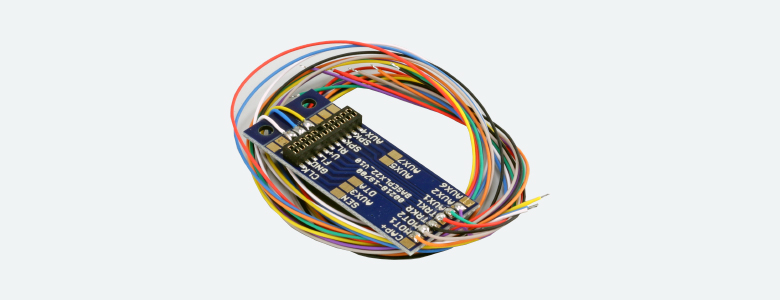

Our new adapter board 3 for decoders with PluX22 interface is best suited for everyone intending to digitise a loco without interface but with many functions without having to carry out major soldering work.

The adapter board with its compact dimensions of 32.5mm x 15.5mm is equipped with an extra mounting lug that can be easily broken off if not required. All outputs as per VHDM resp. NEM standard are accessible as soldering pads. For easy handling and wiring the most important contacts are already equipped with 200mm long wires.

Dimensions: Length 33.0mm x 15.5mm (With mounting tab: 38.0mm x 15.5mm)



Ordering information

  Art.No. Description Delivery
  51958 Adapterplatine PluX22 for 9 outputs, with soldering pads and wires
