Tank car type "Deutz" in gauge H0

  • Art.No. 36202 - Deutz, Persil, 553 801, grey, Ep III, DC

  • Art.No. 36204 - Deutz, BASF 21 80 003 5 088-2, green, Ep IV, DC

  • Art.No. 36205 - Deutz, Ölverein Erfurt, grey, Ep II, DC

  • Art.No. 36206 - Deutz, Leuna 554 160, beige, Ep II, DC

  • Art.No. 36208 - Deutz, 51-06-68, grey, Ep III, DC

  • Art.No. 36209 - Deutz, Buna 51-03-24, blue, Ep III, DC

  • Art.No. 36210 - Deutz, Minol, 21 50 070 0077-5, yellow, Ep IV, DC

  • Art.No. 36216 - Deutz, IVG, grey, grey, green, Ep III, DC

  • Art.No. 36217 - Deutz, ARAL, grey, ESSO, grey, Shell, yellow, Ep III, DC

  • Art.No. 36218 - Deutz, VTG, grey, VTG, grey, EVA, grey, Ep IV, DC

  • Art.No. 36220 - Deutz, ÖBB OEVA 736 6 025, grey, Ep IV, DC

  • Art.No. 36221 - Deutz, Fina 594 825, blue, Ep III, DC

  • Art.No. 36222 - Deutz, BP, 581 371, grey, Ep III, DC

  • Art.No. 36223 - Deutz, Texaco, 21 80 708 4 384-0, green, Ep IV, DC

  • Art.No. 36224 - Deutz, Spolek, R 566093, grey, Ep III, DC

  • Art.No. 36225 - Deutz, Paradubicka, Rt 8-70357, green, Ep III, DC

  • Art.No. 36226 - Deutz, DEA 581 246, green, Ep III, DC

  • Art.No. 36227 - Deutz, Esso, 21 80 000 2 662-3, black-grey, Era IV, DC

  • Art.No. 36229 - Deutz, Olio Fiat 941 978, blue, FS, Era III, DC

  • Art.No. 36232 - Deutz, Nieuwe Matex NL, black, Ep III, DC

  • Art.No. 36241 - Deutz, Serbatoi, silver, Ep IV, DC

  • Art.No. 36242 - Deutz, Erpag, silver/black, Ep III, DC

  • Art.No. 36243 - Deutz, Pakhuismeesteren, grey, Ep III, DC

  • Art.No. 36247 - Deutz, CCCP 185-374, beige, Ep III, DC

  • Art.No. 36248 - Deutz, Olio Fiat 941 986, blue, FS, Era III, DC

  • 36202 - Deutz, Persil, 553 801, grey, Ep III, DC
  • 36204 - Deutz, BASF 21 80 003 5 088-2, green, Ep IV, DC
  • 36205 - Deutz, Ölverein Erfurt, grey, Ep II, DC
  • 36206 - Deutz, Leuna 554 160, beige, Ep II, DC
  • 36208 - Deutz, 51-06-68, grey, Ep III, DC
  • 36209 - Deutz, Buna 51-03-24, blue, Ep III, DC
  • 36210 - Deutz, Minol, 21 50 070 0077-5, yellow, Ep IV, DC
  • 36216 - Deutz, IVG, grey, grey, green, Ep III, DC
  • 36217 - Deutz, ARAL, grey, ESSO, grey, Shell, yellow, Ep III, DC
  • 36218 - Deutz, VTG, grey, VTG, grey, EVA, grey, Ep IV, DC
  • 36220 - Deutz, ÖBB OEVA 736 6 025, grey, Ep IV, DC
  • 36221 - Deutz, Fina 594 825, blue, Ep III, DC
  • 36222 - Deutz, BP, 581 371, grey, Ep III, DC
  • 36223 - Deutz, Texaco, 21 80 708 4 384-0, green, Ep IV, DC
  • 36224 - Deutz, Spolek, R 566093, grey, Ep III, DC
  • 36225 - Deutz, Paradubicka, Rt 8-70357, green, Ep III, DC
  • 36226 - Deutz, DEA 581 246, green, Ep III, DC
  • 36227 - Deutz, Esso, 21 80 000 2 662-3, black-grey, Era IV, DC
  • 36229 - Deutz, Olio Fiat 941 978, blue, FS, Era III, DC
  • 36232 - Deutz, Nieuwe Matex NL, black, Ep III, DC
  • 36241 - Deutz, Serbatoi, silver, Ep IV, DC
  • 36242 - Deutz, Erpag, silver/black, Ep III, DC
  • 36243 - Deutz, Pakhuismeesteren, grey, Ep III, DC
  • 36247 - Deutz, CCCP 185-374, beige, Ep III, DC
  • 36248 - Deutz, Olio Fiat 941 986, blue, FS, Era III, DC

Prior to World War II the rulers already recognised a considerable demand for tank cars for transporting flammable liquids, particularly for assuring reliable replenishment of materials at military bases. Thrifty handling of resources was a key requirement for the development. Taking into account these requirements Westwaggon in Cologne-Deutz developed a tank car without separate frame, where the headstock was welded to the tank. In order to prevent any damage to the tank itself due to the drag and impact forces in normal operation, the lower part of the tank is shaped like a trough. In other words it does not have any boiler shells as was previously the case. About 2000 units of this two-axle car, named after the location of the manufacturer’s head office, were built between 1941 and 1944. While the cars of the first series were supplied to private owners, the military commands such as the Luftwaffe (German Air Force) received the major part of later deliveries. Only very few oil unions received any of these cars. All cars were registered with the German state railway, which meanwhile was only known as the Deutsche Reichsbahn. After World War II most of the privately owned cars remained with the successor companies  of the oil unions while the state owned vehicles were transferred to the Vereinigte Tanklager und Transportmittel GmbH VTG (Consolidated Tank Storage and Transport GmbH), which was founded on 5 November, 1951.  In 1953 the VTG owned a total of 9791 tank cars of various designs. In 1961, for instance, a large number of tank cars was transferred to the Industrieverwaltungsge­sellschaft IVG (Industrial Administration GmbH). These cars were commissioned for the supply of military bases with operating supplies and could be seen individually or in groups right across Germany right through era IV. Private operators such as Shell, ESSO, ARAL or Texaco utilised the Deutz cars up to and in era IV. The last exemplars were decommissioned in 1990.

  • True to scale model of a light weight tank car with 30 m³ capacity

  • Running boards or cat walk grating made off etched parts

  • Various separately applied armatures

  • Prototypically dimensioned railings and grab irons made off hard-wearing plastic

  • Signage boards with correct information matching the respective era

  • Two-sided profiled wheels

  • Weight: 48 g for optimal running characteristics

  • Toe bearing in metal bearings for smooth running

  • Loop and hook couplers with non-magnetic loop in NEM shafts with kinematics

  • Minimum radius = 360 mm

  • Length over buffers = 101.2 mm

Click the image for a bigger view.

Ordering information

  Art.No. Description Delivery
  36202 Tank car, H0, Deutz, DB, Persil, 553 801, grey, Era III, DC
  36204 Tank car, H0, Deutz, BASF 21 80 003 5 088-2, green, DB, Era IV, DC
  36205 Tank car set of 3, H0, Deutz, Ölverein Erfurt, grey, Era II, DC
  36206 Tank car, H0, Deutz, Leuna 554 160, DRG, Era II, DC Q4/18
  36208 Tank car, H0, Deutz, grey, 51 06 68, DR Era III, DC Q4/18
  36209 Tank car, H0, Deutz, DR, Buna, 51-03-24, blue, DR, Era III, DC
  36210 Tank car, H0, Deutz, Minol, 21 50 070 0077-5, yellow, DR, Era IV, DC
  36216 Tank car set of 3, H0, Deutz, IVG, grey, IVG, grey, IVG, green, Era III, DC
  36217 Tank car set of 3, H0, Deutz, ARAL, grey, ESSO, grey, Shell, yellow, Era III, DC
  36218 Tank car set of 3, H0, Deutz, VTG, grey, VTG, grey, EVA, grey, Era IV, DC
  36220 Tank car, H0, Deutz, ÖBB OEVA 736 6 025, grey, Era IV, DC
  36221 Tank car, H0, Deutz, Fina 594 825, blue, DB, Era III, DC Q4/18
  36222 Tank car, H0, Deutz, DB, BP, 581 371, grey, Era III, DC Q4/18
  36223 Tank car, H0, Deutz, DB, Texaco, 21 80 708 4 384-0, green, Era IV, DC Q4/18
  36224 Tank car, H0, Deutz, Spolek, R 566093, grey, CSD, Era III, DC only available at JW Model!
  36225 Tank car, H0, Deutz, Paradubicka, Rt 8-70357, green, CSD, Era III, DC only available at JW Model!
  36226 Tank car, H0, Deutz, DEA 581 246, green, DB, Era III, DC Q4/18
  36227 Tank car, H0, Deutz, DB, Esso, 21 80 000 2 662-3, black/grey, Era IV, DC Q4/18

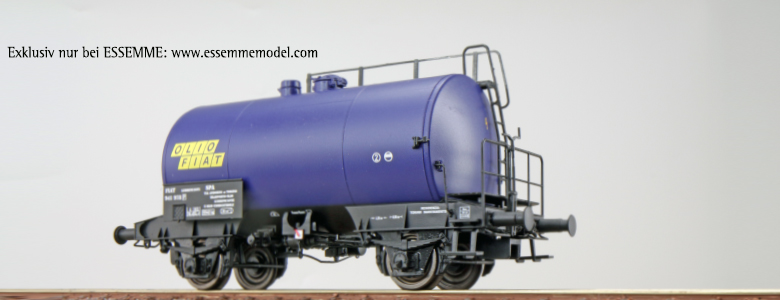

  36229 Tank car, H0, Deutz, Olio Fiat 941 978, blue, FS, Era III, DC only available at ESSEMME!

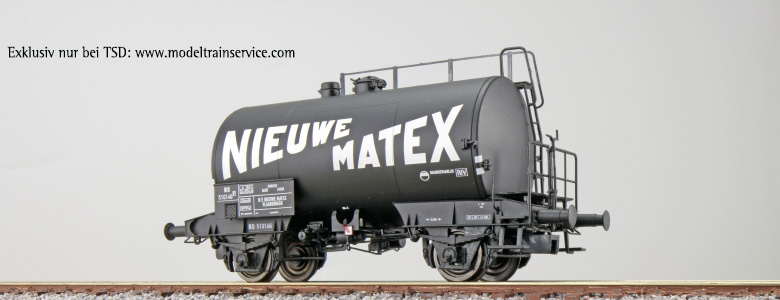

  36232 Tank car, H0, Deutz, Nieuwe Matex NL, black, NS, Era III, DC only available at TSD!

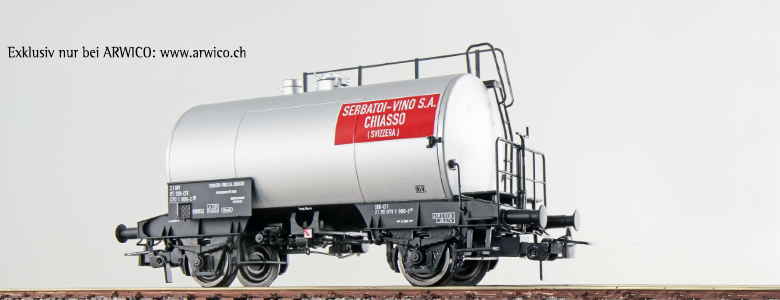

  36241 Tank car, H0, Deutz, Serbatoi, silver, SBB, Era IV, DC only available at Arwico!

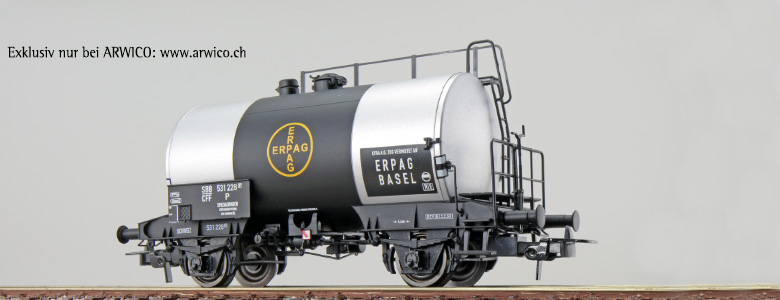

  36242 Tank car, H0, Deutz, Erpag, silver/black, SBB, Era III, DC only available at Arwico!

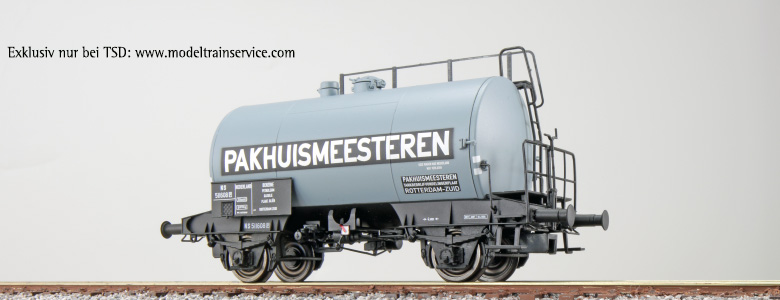

  36243 Tank car, H0, Deutz, Pakhuismeesteren, grey, NS, Era III, DC only available at TSD!
  36247 Tank car, H0, Deutz, CCCP 185-374, beige, CCCP, Era III, DC only available at SELEMA!

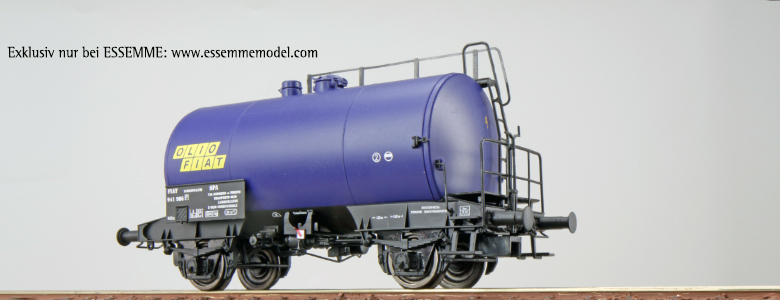

  36248 Tank car, H0, Deutz, Olio Fiat 941 986, blue, FS, Era III, DC only available at ESSEMME!
