RhB Diesel loco Tm 2/2 in gauge G

  • Art.No. 30490 - Diesel loco Schöma Tm 2/2, 116 RhB, orange

  • Art.No. 30491 - Diesel loco Schöma Tm 2/2, 115 RhB, orange

  • Art.No. 30492 - Diesel loco Schöma Tm 2/2, 119 RhB, orange

  • Art.No. 30493 - Diesel loco Schöma Tm 2/2, 111 RhB, orange

  • Art.No. 30494 - Diesel loco Schöma Tm 2/2, 114 RhB, orange

  • 30490 - Diesel loco Schöma Tm 2/2, 116 RhB, orange
  • 30491 - Diesel loco Schöma Tm 2/2, 115 RhB, orange
  • 30492 - Diesel loco Schöma Tm 2/2, 119 RhB, orange
  • 30493 - Diesel loco Schöma Tm 2/2, 111 RhB, orange
  • 30494 - Diesel loco Schöma Tm 2/2, 114 RhB, orange

To modernize the shunting operation, the Rhaetian Railway RhB ordered ten diesel-hydraulically powered shunting tractors from the German manufacturer Schöma. The vehicles are very similar to the 420 CT 4H, which RACO purchased from 1991. The RhB handed over the Schöma tractors between 2001 and 2004 as Tm 2/2 with track numbers 111 to 120. The first four two-axle vehicles manufactured by the manufacturer as type DFL-250 DCL are driven by a six-cylinder Cummins diesel engine KT-1150-L with an impressive 317 kW, which transmits its power to a three-speed converter transmission. In the last six tractors designated as CFL-250 DA with road numbers 115 to 120, the engine developed 324 kW. Among other things, these locomotives have a longer overall length due to a modified cooling system. The locomotives are stationed at larger train stations such as Thusis, Ilanz or Davos. With a top speed of 60 km / h, the tractors can also prove themselves in front of light freight trains and handovers in the route service and swim with them on the predominantly single-track network more easily than their predecessors, which only had a speed of 50 km / h. An eddy current brake that works almost to a standstill enables wear-free deceleration. The radio remote control, with which the predecessor locomotives 85 to 90 were still equipped, was dispensed with.

  • Antrieb auf beiden Achsen durch kräftigen fünfpoligen Mittelmotor

  • LokSound 5 XL Decoder steuert alle Fahr-, Sound- und Lichtfunktionen

  • Rauchgenerator mit Dampfausstoß synchron zum LokSound

  • Zwei digital schaltbare Kupplungen zum realistischen Rangieren

  • Großer Lautsprecher für ungetrübten Soundgenuss

  • Allradstromabnahme

  • Gefederte Achsen (einseitig mit Pendelachse) für eine sichere Stromabnahme

  • PowerPack-Energiespeicher für unterbrechungsfreie Spannungsversorgung

  • Edelstahlräder

  • Robuste Bauweise weitgehend aus Messing und Metall

  • Durchbrochen ausgeführte Trittstufen

  • Vorbildgerechte Stirnbeleuchtung

  • Führerstand- und Führerpultbeleuchtung

  • Vollständig eingerichteter Führerstand

  • Befahrbarer Mindestradius 600 mm

  • Länge über Mittelpuffer 336 mm (kurze Version) beziehungsweise 346 mm (lange Version)

Ordering information

  Art.No. Description Delivery
NEW! 30490 Pullman IIm, RhB Diesel loco Schöma Tm 2/2 long, 116 RhB, orange, Era VI Q4/22

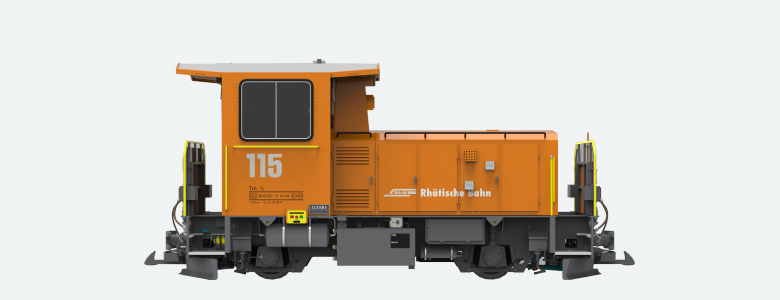

NEW! 30491 Pullman IIm, RhB Diesel loco Schöma Tm 2/2 long, 115 RhB, orange, Era VI Q4/22

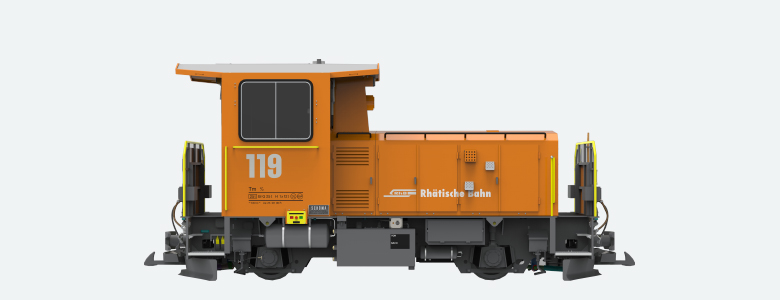

NEW! 30492 Pullman IIm, RhB Diesel loco Schöma Tm 2/2 long, 119 RhB, orange, Era VI Q4/22
NEW! 30493 Pullman IIm, RhB Diesel loco Schöma Tm 2/2 short, 111 RhB, orange, Era VI Q4/22

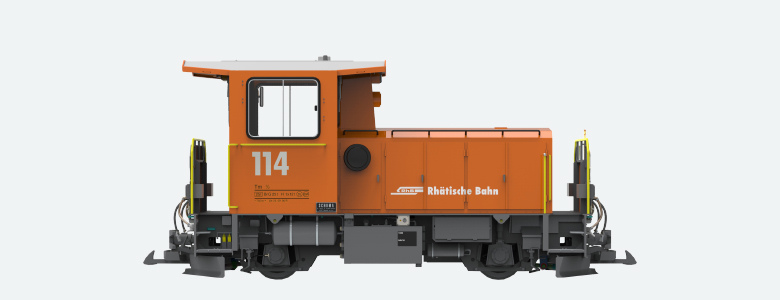

NEW! 30494 Pullman IIm, RhB Diesel loco Schöma Tm 2/2 short, 114 RhB, orange, Era VI Q4/22
