Loudspeakers for LokSound (micro) V4.0

Further information

When selecting the loudspeaker the used decoder type is important. Depending on the decoder, different loudspeakers can be used as follows:

LokSound V4.0, LokSound micro V4.0 and LokSound V4.0 M4 decoders need the new speaker with an impendance of 4 Ohms. With the present 100 Ohms loudspeakers you would hardly hear anything.

Conversely, you must never use the new 4 Ohms speakers with the previous LokSound V3.5 decoder. The decoder could be destroyed! When the decoder is replaced, the speaker must! be changed as well.

Ordering information

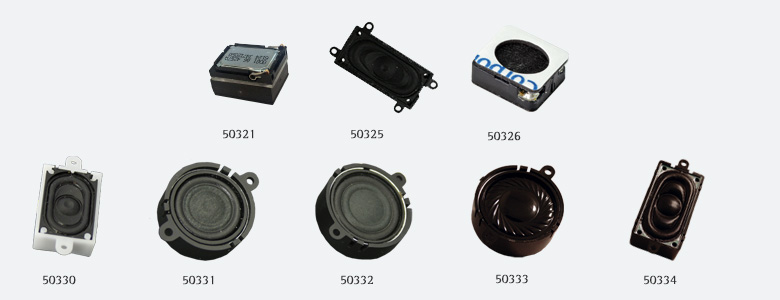

  Art.No. Description Delivery
NEW! 50321 Loudspeaker 15mm x 11mm, 8 Ohms, with 4pc sound chamber kit
  50326 Loudspeaker 14mm x 12mm square, 8 Ohms, 1~2W, with integrated sound chamber
  50327 Two loudspeakers 16mm, oval, 8 Ohms, 1~2W, with common sound chamber
  50328 Two loudspeakers 13 mm, 8 Ohms, round, 1~2W with sound chamber Expired
  50330 Loudspeaker 16mm x 25mm, rechteckig, 4 Ohms, with sound chamber
  50331 Loudspeaker 20mm, round, 4 Ohms, 1~2W, with sound chamber
  50332 Loudspeaker 23mm, round, 4 Ohms, 1~2W, with sound chamber
  50333 Loudspeaker 28mm, round, 4 Ohms, 1~2W, with sound chamber
  50334 Loudspeaker 20mm x 40mm, square, 4 Ohms, with sound chamber
