Cables & cable harnesses

Thin cables

Who doesn’t know the problem: if you work on locos and decoders (e.g. run wires from loco to tender), you need thin, extremely flexible cables. These are not always easy to get. Responding to many requests from our customers, as of now we offer you super thin cables (AWG 36) with an outside diameter of only 0.5 mm (0.02 inch), in all common DCC colors. They come in 10 m (30 feet) bundles at an affordable price.

Cable harness

If the loco in question features no digital interface and you don’t want to cut off the interface-plug of your loco, simply make use of one of our harnesses 51950 resp. 51951: Solder in the harness and then plug in the decoder. That’s how the Pro’s do it!

Ordering information

  Item No. Description
  51940 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, white colour
  51941 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, purple colour
  51942 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, black colour
  51943 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, red colour
  51944 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, orange colour
  51945 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, green colour
  51946 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, grey colour
  51947 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, yellow colour
  51948 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, brown colour
  51949 Super thin cable, 0.5mm diameter, AWG36, 10m bundle, blue colour
  51950 cable harness with 8-pin plug according to NEM 652, DCC colour, length 300mm
  51951 cable harness with 6-pin plug according to NEM 651, DCC colour, length 300mm

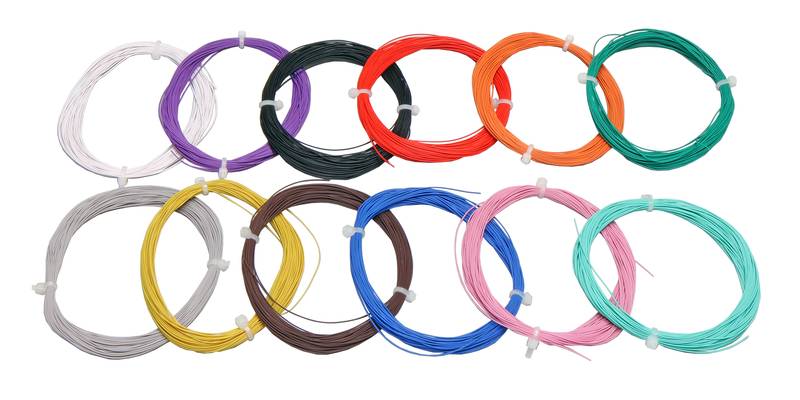

51940 - 51949

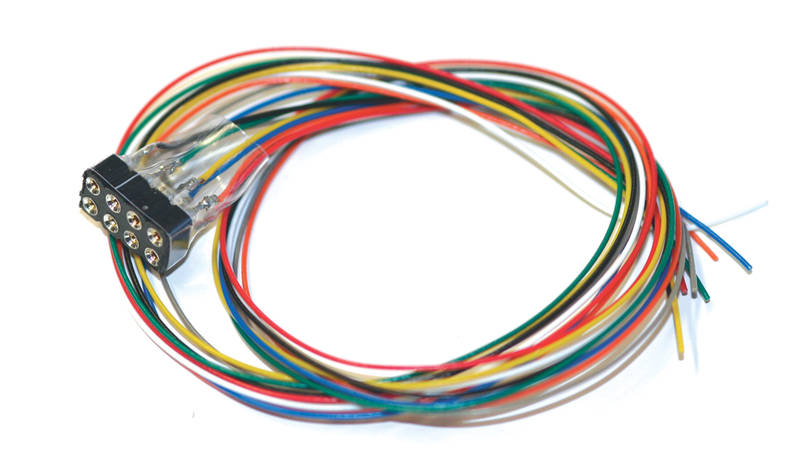

51950

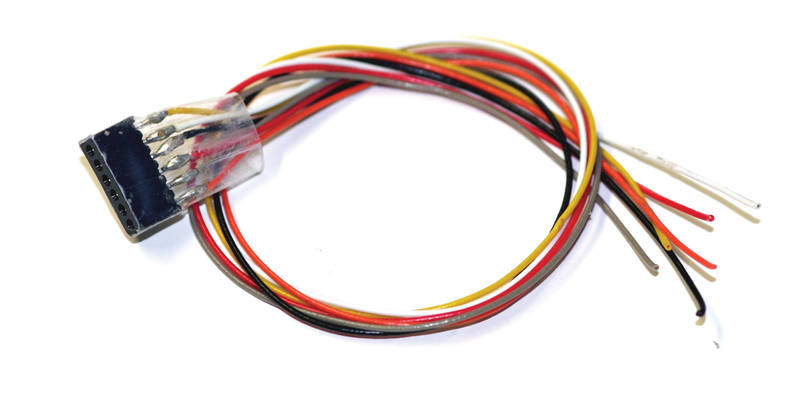

51951
