Permanent magnets

For the retrofit of old Märklin all-current motors you need a permanent magnet. It replaces the present field  winding, and in combination with a LokSound – or LokPilot decoder, helps to make your loco run astonishingly smooth. We offer 4 different magnets, depending on the particular armature. You find the armature code number on a spare-parts sheet, which you can download from www.maerklin.de.

Ordering information

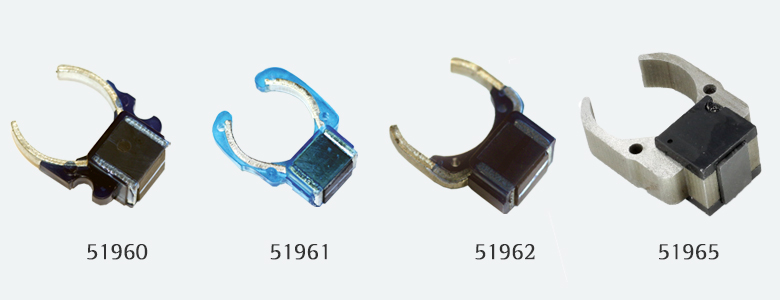

  Item No. Description Delivery

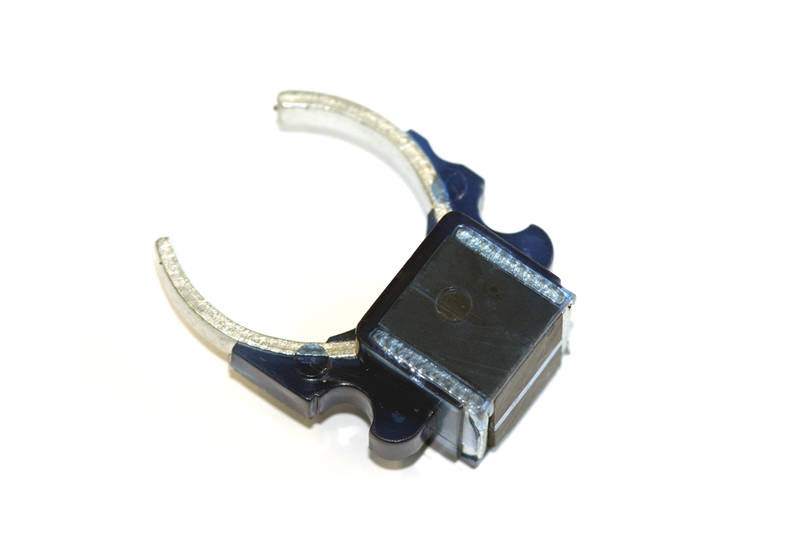

  51960 Permanent magnet like 220560, for armature 217450, D=24.5mm, for motor holder 216730, 211990, 228500

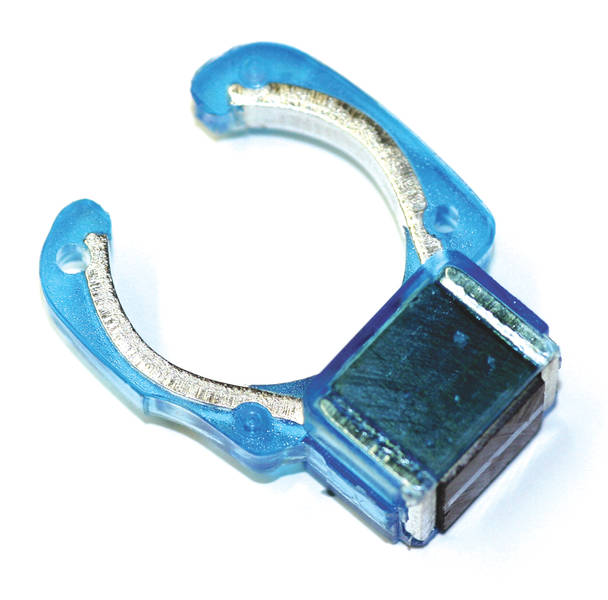

  51961 Permanent magnet like 220450, for armature 200680, D=18.0mm, for motor holder 204900

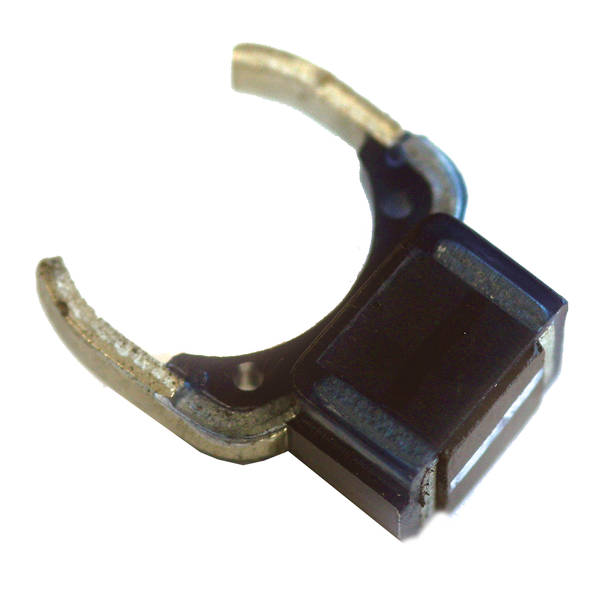

  51962 Permanent magnet like 235690 and 245480, for armature 231440, D=19.1mm, for motor holder 231350

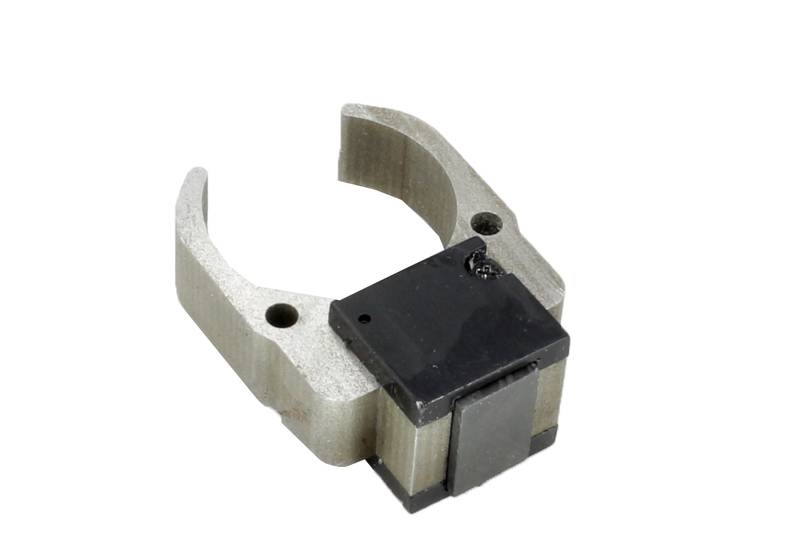

  51965 Permanent magnet for Märklin® 3015, ET800, ST800, Gauge 1 motors
51960
51961
51962
51965
