LokPilot 5

The LokPilot 5 DCC is the "twin brother" of the LokPilot 5. The two share almost all characteristics, however, the LokPilot 5 DCC is a pure DCC decoder and cannot be used on analog AC systems. This lack of flexibility comes with a cheaper price.

LokPilot 5 decoders are offered with all common interfaces.


The LokPilot 5 DCC is a "pure-bred" DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus® the decoders register automatically with a suitable DCC system like the ESU CabControl.

The decoder accepts all DCC programming modes and thanks to RailCom® the CV values ​​can be read on the main track with RailCom equipped DCC systems. For command stations that only program the CVs from 1-255 auxiliary CV registers exist.

The LokPilot 5 DCC decoder recognizes the Märklin® braking sections as well as the ZIMO® HLU / ZACKCommands or the Lenz® ABC system. Also braking with DCC brake modules or with DC voltageis possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle trainenables automatic commuting between two train stations.

The LokPilot 5 DCC decoder can be used on analog DC trains. The top speedcan be set separately.

The decoder switches between the operating modes fully automatically "on-the-fly".


We know that you want your locomotives to be as realistic as possible. Therefore we have the LokPilot 5DCC packed with function outputs. Depending on the interface version, each LokPilot offers 5 DCCDecoder at least 10 amplified function outputs with 250mA output current each. In the executionswith PluX22 or 21MTC interface there are 4 outputs to control servos orLogic level outputs added. All-important lighting functions are available. The brightness of each outputcan be set separately. The decoder masters automatic pushing and pullingwhen uncoupling for ROCO®, Krois® and Telex® couplings.

Motor control

The engine control of the LokPilot 5 DCC has been fundamentally improved again. A variably adjustablePWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors.Operation - The typical “hum” is a thing of the past. The load control now has up to10 CVs  which can be adjusted for difficult cases. The unique "Autotune" function enablesthe automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to 1.5A of motor current. Enough juice even for older motors.

Operational safety

On request, a PowerPack can be fitted to the LokPilot 5 DCC to bridge dirty rail sections.


Of course, all function outputs and the motor output are protected against overload.

We want you to enjoy your decoder for as long as possible.

59620 / 8-pin NEM652
59622 / PluX22
59626 / 6-pin NEM651
59629 / 21MTC NEM660
59659 / 21MTC MKL

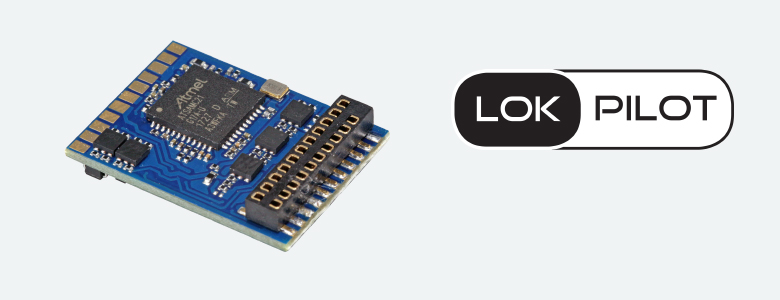

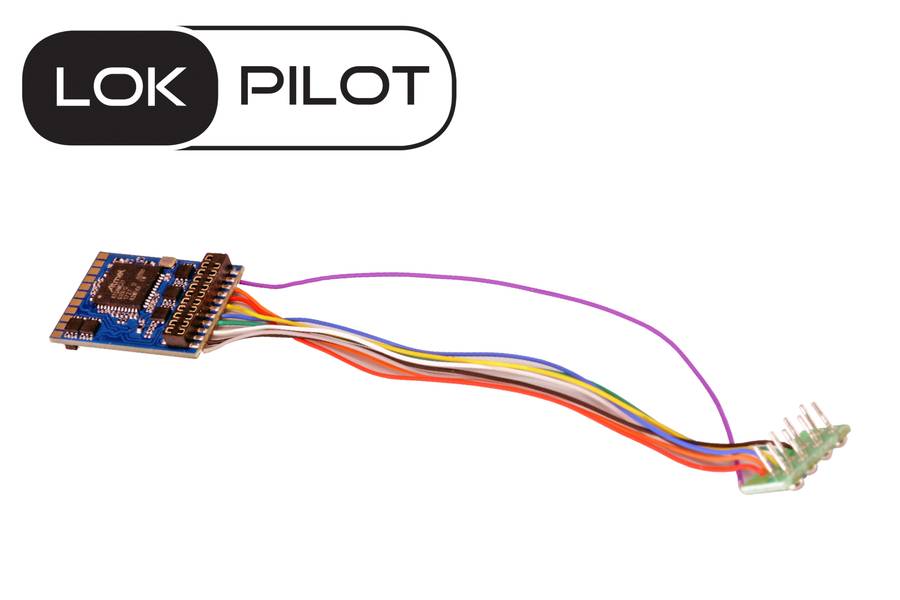

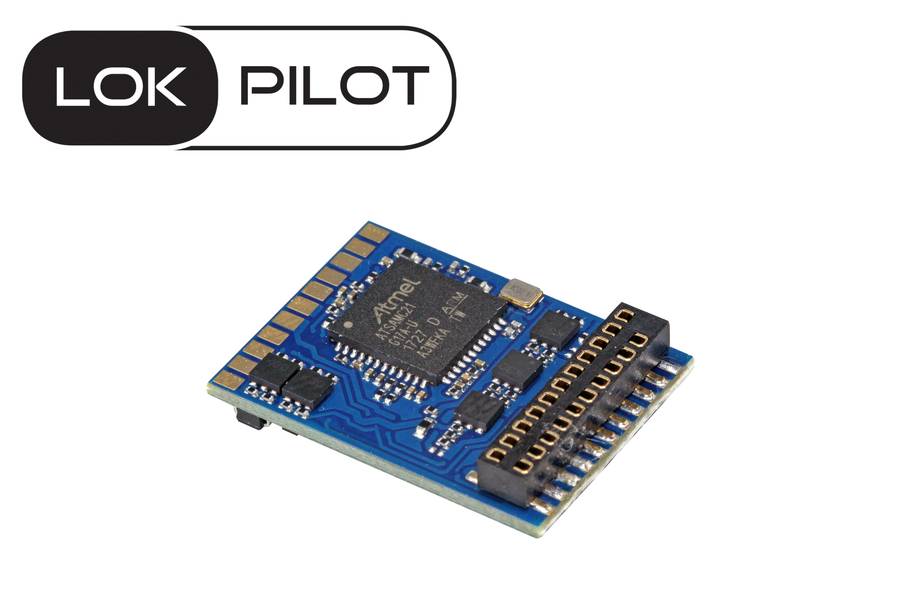

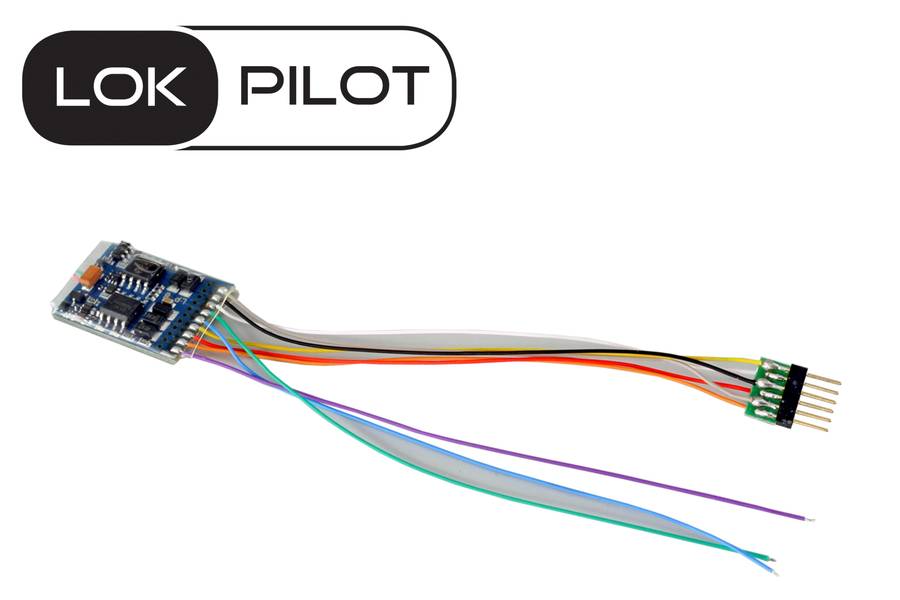

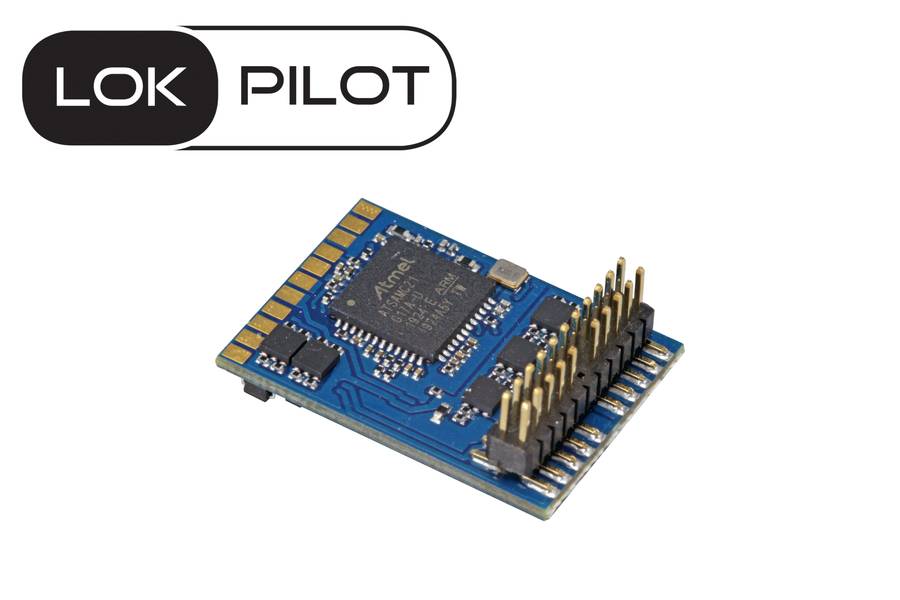

Click the image for a bigger view.
Technische Daten
  NMRA/DCC mit 14, 28 und 128 Fahrstufen, DCC RailCom®
  DCC 2-stellige und 4-stellige Adressen (kurze und lange Adressen)
  Analog Gleichspannung (abschaltbar).
  Automatische Erkennung der Betriebsart und DCC-Fahrstufeneinstellung
  Unterstützung der Lenz® LG100, Märklin®, Roco® Bremsstrecken und ZIMO® HLU Befehle
  Unterstützung für ABC Bremsmodus und ABC-Pendelzugstrecke
  Falschfahrbit / Speicherung der Betriebszustände
  Rangiergang und Anfahr- und Bremsverzögerung per Taste schaltbar
  2,0 A Dauerbelastbarkeit
  Anschluss von Gleichstrom- Glockenanker- und Wechselstrommotoren (mit Permanentmagnet)
  Geräuschlose, motorschonende Ansteuerung mit bis zu 50 kHz Taktfrequenz
  Motorausgang gegen Überlast geschützt. Lastregelung der 5. Generation (abschaltbar)
  10 verstärkte Funktionsausgänge
  Version mit 21MTC-Schnittstelle zusätzlich 2 Logiklevelausgänge sowie 2 weitere Logiklevelausgänge statt SUSI
  Version mit PluX22-Schnittstelle 2 Logiklevelausgänge statt SUSI
  250mA Belastbarkeit pro verstärktem Ausgang
  Summenstrom aller Funktionsausgänge ca. 500mA. Ausgänge kurzschlussfest
  Belegung der Funktionsausgänge frei wählbar (function mapping)
  21,4mm x 15,5mm x 4,5mm

Ordering information

  Art.No. Description Delivery
  59620 LokPilot 5 DCC, 8-pin NEM652, gauge H0 ,0
  59622 LokPilot 5 DCC, PLUX22 NEM658, gauge H0 ,0
  59626 LokPilot 5 DCC, 6-pin NEM651, gauge H0 ,0
  59629 LokPilot 5 DCC, 21MTC NEM660, gauge H0 ,0
  59659 LokPilot 5 DCC, 21MTC MKL, gauge H0 ,0
