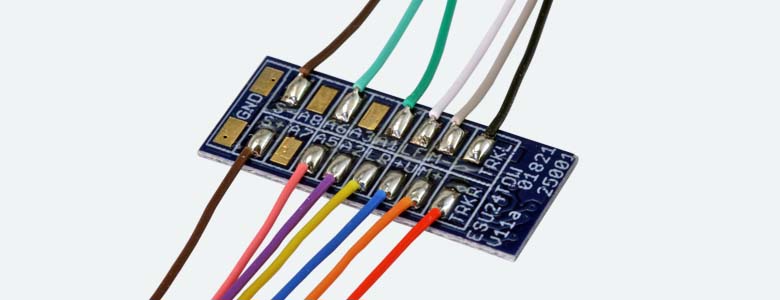

Adapterboard E24 socket to open wires

The E24 adapter board is suitable if you want to digitize a very small locomotive without a digital interface using the LokSound 5 Nano. With dimensions of only 19.6 mm x 8.5 mm, the board is exactly the same size as the decoder itself and therefore only increases the thickness as a “sandwich”. Already soldered connection wires with a length of approx. 88 mm for power pickup, motor and speaker as well as U+, the two light outputs and AUX1, AUX2, AUX5 ensure easy handling and wiring. Soldering pads are available for AUX3, AUX7 and AUX8.


Ordering information

  Art.No. Description Delivery
NEW! 53953 Adapter board, 24-pin E24 socket to open wires, 88mm, heat shrink
